Execution Models in Databases Query Processing

• A physical query plan is a tree of physical plan operators
• The execution model defines:
  • the interface that connects operators to each other
    • Relation(s) in, relation out
    • Producer-consumer relationship
  • how data is propagated between operators
  • how operators are scheduled

---

Contents

---

• Synchronous Execution Models
  • Pipelining
  • Iterators
• Asynchronous Execution Models
  • The Push Model
  • The Pull Model
  • The Stream Model

---

Synchronous Execution Models

• The operator interface is synchronous:
  • Operators don’t generate tuples until getNext() is called
  • In reality, different operators will have different evaluation times
  • Some operators may block – causing the whole plan to block

Pipelining

• Pipelining: read input, process, propagate output to next operator
• Benefits of pipelining:
  • No buffering (because no materialisation)
  • Faster execution (no materialisation, so no disk I/Os)
  • More in-memory operations
• Not all operators can be pipelined
  • Some require intermediate relations to be materialised
  • Some operators will always block

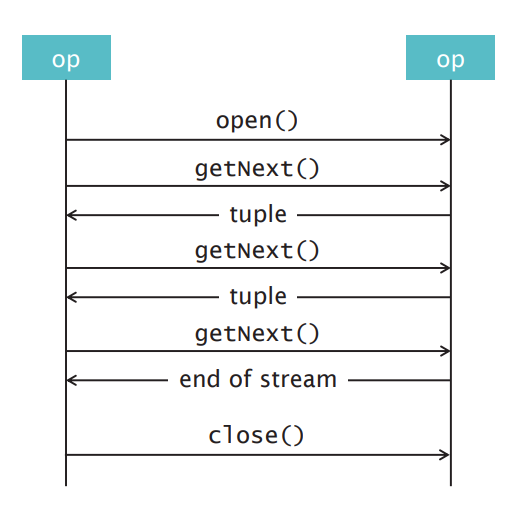

Iterators

• Standard interface on each operator:
  • open()
  • getNext()
  • close()
• Query engine calls the interface on the root operator
• Calls to interface are propagated down the tree

Asynchronous Execution Models

• Asynchronous implementation by introducing buffering:
  • Within the operator calling the interface (the push model)
  • Within the operator being called (the pull model)
  • In the connections between operators (the stream model)
• Asynchronous implementations minimise time during which blocking occurs

The Push Model

• Propagate from the leaves upwards
  • Producer propagates tuples as soon as they’re available
  • Producer propagates tuples regardless of whether consumer has yet called getNext()
  • Consumer buffers incoming tuples until it calls getNext()
• Minimises idle time, good for pipelining

The Pull Model

• Propagation driven from the root
  • Producer buffers tuples until getNext() is called
  • On-demand, close to pure implementation

The Stream Model

• Connections as first-class objects:
  • FIFO queues of tuples
  • Producer propagates tuples to the queue as soon as they’re available
  • Consumer call to getNext() does not block if there’s something in the queue
• Asynchronous operators (but synchronous streams), good for parallelisation
